Linear Actuator

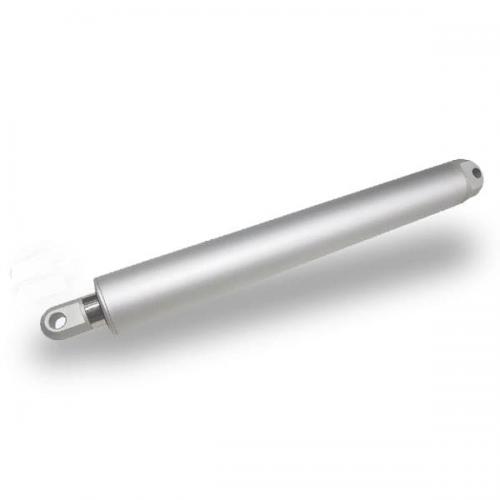

Pergolasys provides linear actuators of various sizes and thrusts to meet the needs of outdoor awnings, RVs, medical treatment, factories, smart doors and windows, lift desks, etc. the SL-LA-36 Electric Linear Actuator, the ideal solution for motorized louvered pergolas, outdoor skylights, sunrooms, and blinds. Engineered for reliability and durability, this actuator features a robust stainless steel inner tube and an IP66 waterproof rating, ensuring resilience against the elements. With a maximum thrust of 2000N and versatile voltage options (12VDC, 24VDC, 36VDC), it delivers effortless operation in any weather. Built-in limit protection adds safety and precision, making the SL-LA-36 the perfect choice for enhancing your outdoor living experience with unparalleled comfort and control.
IP66-rated linear actuator, perfect for outdoor use. All linear actuator from Pergola System use heavy-duty materials and offers a quiet, yet tough performance. Built-in metal gear drive mechanism makes them quieter and much harder to back drive than other styles of linear actuators. We made them from a thick, hard, tough aluminum case with stainless steel rods to be able to handle the forces. This actuator finds applications in solar panels, agriculture, industrial, medical devices, electric window openers, camper roof, lifting tables, recliners, TV lifters, and massage sofas.
MAIN CHARACTERISTICS
❖ High forces up to 5000N.
❖ Built-in limit switch.

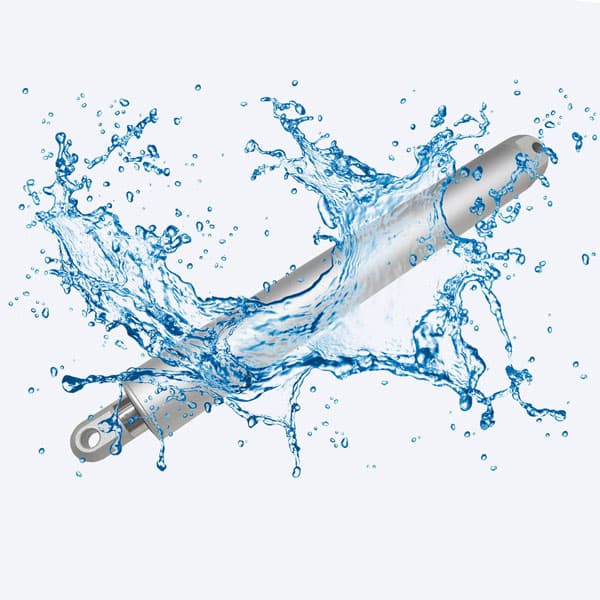

❖ Protection level: IP66.
❖ Low noise as designed under 45dB.
❖ Aluminum case with stainless steel rods.
Specifications

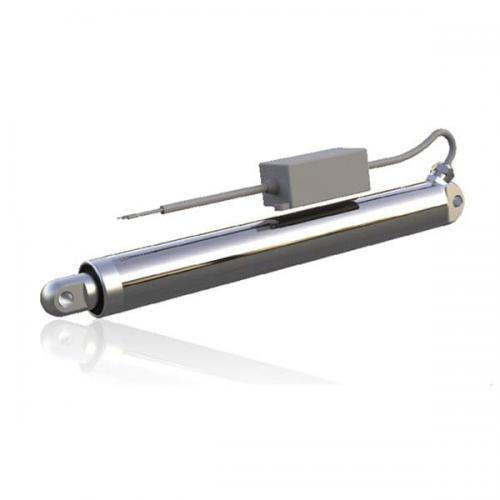

Model | SL-LA-25-A | SL-LA-25-B |
Diameter | 25mm | 25mm |
Force | 300N | 500N |
Speed No-Load | 10mm/s | 7mm/s |
Input Voltage | 12V/24V | 12/24v |
No-load Current | 0.28/0.15A | 0.25/0.18A |
Rated Current | 1.5/0.8A | 1.5/0.8A |
Stroke | 30-500mm | 30-500mm |
Duty Cycle | 10% | 10% |
IP Rating | IP66 | IP66 |
Operational Temperature | -20°C/65°C | -20°C/65°C |
Operating Noise | 53dB | 53dB |
Limit Switch | External | External |
Housing Material | Stainless steel | Stainless steel |
Stroke Rod Material | Stainless steel | Stainless steel |
Cable | 35cm | 35cm |
Certifications | CE, ROHS | CE, ROHS |
Model | SL-LA-36-A | SL-LA-36-B |
Diameter | 36mm | 36mm |
Force | 1000N | 2000N |
Speed No-load | 7.5mm/s | 9mm/s |
Input Voltage | 12V/24V | 12/24v |
No-load Current | 0.6/0.3A | 1.0/0.6A |
Rated Current | 3.0/1.5A | 4.0/2.5A |
Stroke | 30-600mm | 30-600mm |
Feedback | Option | Option |
Duty Cycle | 10% | 10% |
IP Rating | IP66 | IP66 |
Operational Temperature | -20°C/65°C | -20°C/65°C |
Operating Noise | 51dB | 51dB |
Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable |
Housing Material | Aluminum alloy | Aluminum alloy |
Stroke Rod Material | Stainless steel | Stainless steel |
Cable | 36cm | 36cm |
Certifications | CE, ROHS | CE, ROHS |
Model | SL-LA-38-A | SL-LA-38-B |
Diameter | 38mm | 38mm |
Force | 2000N | 3000N |
Speed No-load | 9mm/s | 5mm/s |
Input Voltage | 12V/24V | 12/24V |
No-load Current | 2.0/1.5A | 2.0/1.5A |
Rated Current | 6.0/4.5A | 6.0/4.5A |
Stroke | 30-600mm | 30-600mm |
Feedback | Option | Option |
Duty Cycle | 10% | 10% |
IP Rating | IP67 | IP67 |
Operational Temperature | -25°C/65°C | -25°C/65°C |
Operating Noise | ＜60dB | ＜60dB |
Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable |
Housing Material | Aluminum alloy | Aluminum alloy |
Stroke Rod Material | Stainless steel | Stainless steel |
Cable | 36cm | 36cm |
Certifications | CE, ROHS | CE, ROHS |
Model | SL-LA-50-A | SL-LA-50-B | SL-LA-50-C |
Diameter | 50mm | 50mm | 50mm |
Rated Force | 1500N | 3000N | 5000N |
Speed No-load | 7.69mm/s | 4.2mm/s | 2.4mm/s |
Input Voltage | 12V/24V | 12/24v | 12/24v |
No-load Current | 1.0/0.6A | 1.0/0.6A | 1.0/0.6A |
Rated Current | 3.0/2.0A | 3.5/2.5A | 3.5/2.5A |
Stroke | 30-1000mm | 30-1000mm | 30-1000mm |
Feedback | Option | Option | Option |
Duty Cycle | 10% | 10% | 10% |
IP Rating | IP66 | IP66 | IP66 |
Operational Temperature | -20°C/65°C | -20°C/65°C | -20°C/65°C |
Operating Noise | 51dB | 51dB | 51dB |
Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable | Built-in, non-adjustable |
Housing Material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Stroke Rod Material | Stainless steel | Stainless steel | Stainless steel |
Cable | 36cm | 36cm | 36cm |
Certifications | CE, ROHS | CE, ROHS | CE, ROHS |
Installation Option
