Tubular Motor

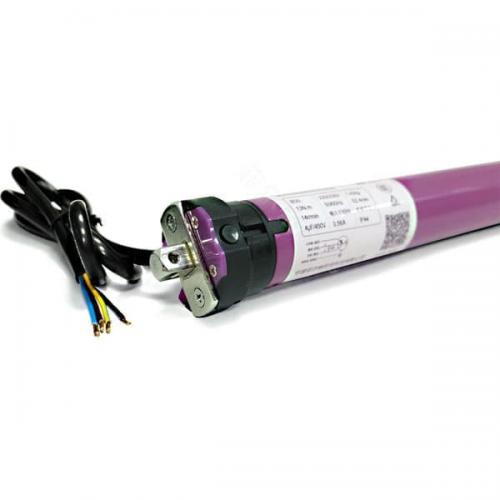

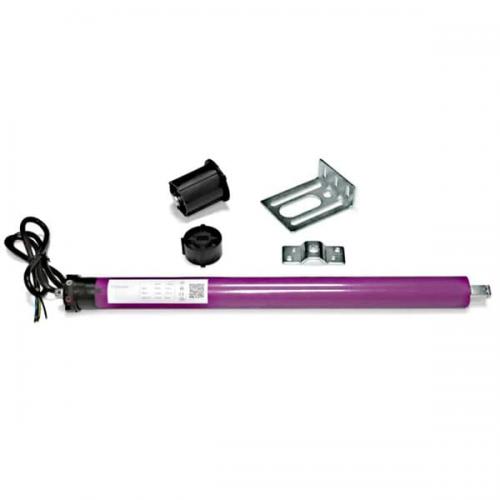

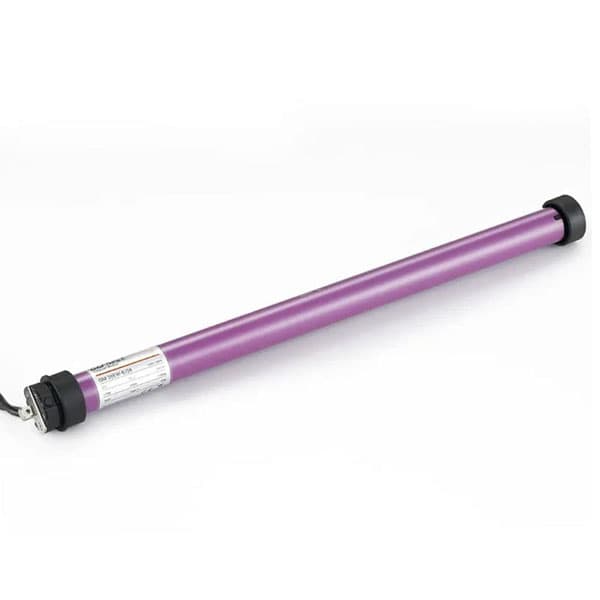

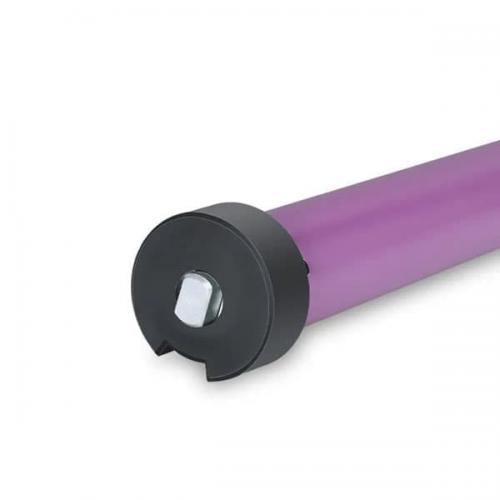

AC Tubular Motor

Experience the perfect blend of power and precision with our AC Tubular Motor, designed to seamlessly integrate with roller shutters and pergolas. This advanced motor brings unparalleled convenience and smart technology to your home or business, ensuring smooth and efficient operation every time. except remote emitter control, we provide Smartphone App Control, it make the system easily adjust settings, schedule operations, and monitor performance from your mobile device for ultimate flexibility and control.

External AC power supply, without additional  wireless receiver, can be directly controlled by  wireless remote control, especially for high  applications. Pergola System’s tubular motor and remote controller can be widely used to Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen.

MAIN CHARACTERISTICS

    ❖ Electronic Limit and The Third Limit to meet various applications;
    ❖ High impact resistant relay, industrial-grade CPU, ensure stable and long-term life;
    ❖ Low Running noise 45dB;
    ❖ Set limit positions by remote;
    ❖ Remotely set the limit, it is more convenient to install and adjust;
    ❖ Upward/Downward resistance and stop function, safer and more reliable;

Specifications

MODEL NO.

RATED TORQUE
(N.M)

RATED SPEED
(RPM)

RATED POWER
(W)

RATED CURRENT
(A)

RUNNING TIME
(MIN)

IP CLASS

LENGTH

L1/L2
(MM)

AC230V 50Hz

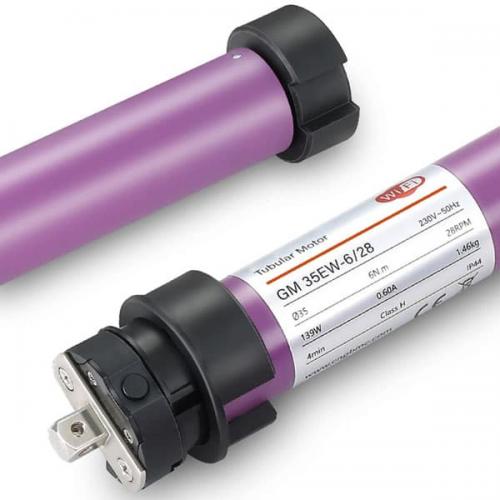

35EW-6/28

6

28

121

0.53

4

IP44

577/564

35EW-10/17

10

17

121


0.53

4

IP44

577/564

35EW-13/14

13

14

121


0.53

4

IP44

577/564

AC120V 60Hz

35EW-6/33

6

33

106


0.87

4

IP44

577/564

35EW-10/21

10

21

128

1.06

4

IP44

577/564

35EW-13/15

13

15

128

1.06


4

IP44

577/564

MODEL NO.

RATED TORQUE
(N.M)

RATED SPEED
(RPM)

RATED POWER
(W)

RATED CURRENT
(A)

RUNNING TIME
(MIN)

IP CLASS

LENGTH

L1/L2
(MM)

AC230V 50Hz

45E-10/15

10

15

112

0.49

4

IP44

574/561

45E-10/26

10

26

145

0.64

4

IP44

624/611

45E-20/15

20

15

145

0.64

4

IP44

574/561

45E-20/26

20

26

170

0.77

4

IP44

664/651

45E-30/15

30

15

191

0.83

4

IP44

624/611

45E-40/15

40

15

198

0.86

4

IP44

644/631

45E-50/12

50

12

205

0.89

4

IP44

644/631

AC120V 60Hz

45E-10/19

10

19

135

1.12

4

IP44

644/631

45E-10/32

10

32

160

1.33

4

IP44

644/631

45E-20/19

20

19

205

1.73

4

IP44

644/631

45E-20/32

20

32

236

1.96

4

IP44

684/671

45E-30/13

30

13

205

1.73

4

IP44

684/671

45E-40/13

40

13

235

1.96

4

IP44

684/671

45E-50/13

50

13

270

2.29

4

IP44

684/671

MODEL NO.

RATED TORQUE
(N.M)

RATED SPEED
(RPM)

RATED POWER
(W)

RATED CURRENT
(A)

RUNNING TIME
(MIN)

IP CLASS

LENGTH

L1/L2
(MM)

AC230V 50Hz

59R-60/15

60

15

310

1.35

4

IP44

768/753

59R-80/15

80

15

330

1.43

4

IP44

768/753

59R-100/9

100

9

340

1.52

4

IP44

768/753

59R-120/9

120

9

350

1.56

4

IP44

768/753

AC120V 60Hz

59R-60/14

60

14

278

2.41

4

IP44

768/753

59R-80/14

80

14

340

2.94

4

IP44

768/753

59R-100/11

100

11

350

2.94

4

IP44

768/753
